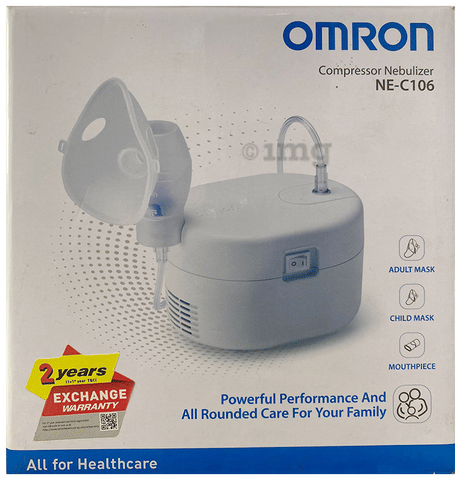

Omron NE-C106 Compressor Nebuliser

Omron NE-C106 Compressor Nebuliser is a powerful and efficient device designed to help assist individuals suffering from respiratory conditions such as asthma, chronic bronchitis, and other lung diseases. It ensures effective medication delivery to the lungs through a fine mist, making it suitable for adults and children. This nebulizer features an easy-to-use design with a robust compressor, making it ideal for home use. It includes a medication tank, inhalation top, vaporizer head, mouthpiece, adult mask, and child mask, ensuring complete respiratory care for the entire family.

Uses:
Omron Compressor Nebulizer NE-C106 is designed for efficient inhalation therapy to manage and relieve respiratory conditions such as asthma, bronchitis, COPD, and other breathing disorders by converting liquid medication into an aerosol mist for easy inhalation.

Product Features and Specifications:

• Effective Medication Delivery: Converts liquid medication into a fine mist for efficient inhalation, ensuring optimal absorption by the lungs

• Powerful Compressor: Operates with a 110VA power consumption, ensuring reliable performance for medical needs

• Nebulization Rate: Delivers approx. 0.3 ml/min (by weight loss) without the mouthpiece, allowing quick and efficient medication delivery

• Optimal Aerosol Output: Provides an aerosol output of 0.517 ml/min (2ml 1% NaF) with the mouthpiece, ensuring consistent medication distribution

• Small Particle Size: Generates an aerosol particle size (MMAD) of approx. 4.56µm, ideal for reaching deeper into the respiratory tract

• Large Medication Tank: Comes with a 10ml maximum medication tank capacity, allowing extended nebulization sessions

• Safe and Hygienic: Designed with washable parts, including the medication tank, inhalation top, mask, mouthpiece, and vaporizer head, ensuring easy maintenance

• Dual User-Friendly Design: Includes an adult mask and a child mask, making it suitable for users of all ages

• Complete Kit: Includes a compressor, nebulizer kit, air tube (PVC, 100 cm), mouthpiece, adult mask, child mask, two air filters, instruction manual, and warranty card for hassle-free use

• Easy to Use: Features a simple step-by-step assembly with clear instructions, making it ideal for home use

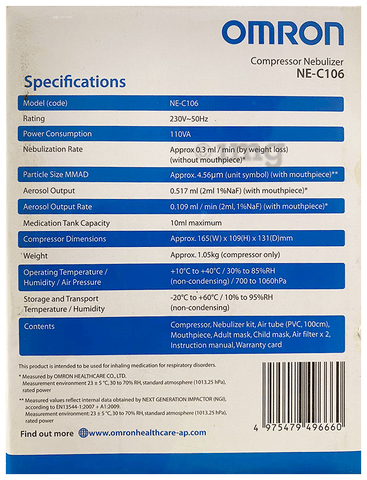

• Rating: 230V/50Hz

• Power Consumption: 110VA

• Nebulization Rate: Approx. 0.3 ml/min (by weight loss) (without mouthpiece)

• Particle Size MMAD: Approx. 4.56µm (with mouthpiece)

• Aerosol Output: 0.517 ml/min (2ml 1% NaF) (with mouthpiece)

• Aerosol Output Rate: 0.109 ml/min (2ml, 1% NaF) (with mouthpiece)

• Medication Tank Capacity: 10ml maximum

• Compressor Dimensions: Approx. 165mm (W) × 109mm (H) × 131mm (D)

• Weight: Approx. 1.05kg (compressor only)

• Operating Temperature / Humidity / Air Pressure: +10°C to +40°C / 30% to 85% RH (non-condensing) / 700 to 1060hPa

• Storage and Transport Temperature / Humidity: -20°C to +60°C / 10% to 95% RH (non-condensing)

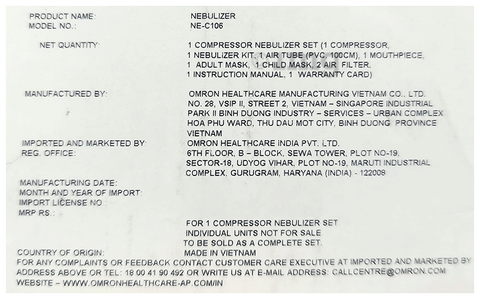

Net Quantity: 1 Compressor Nebulizer Set

Suitable For: Adults and children

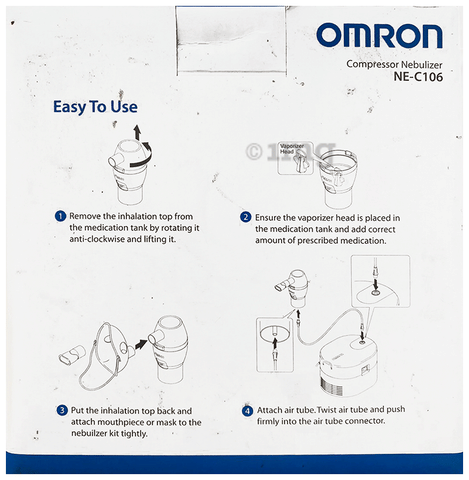

Directions for Use:

• Remove the inhalation top from the medication tank by rotating it anti-clockwise and lifting it

• Ensure the vaporizer head is placed inside the medication tank and add the correct amount of prescribed medication

• Reattach the inhalation top and securely connect the mouthpiece or mask to the nebulizer kit

• Attach the air tube by twisting it and pushing it firmly into the air tube connector

• Switch on the device and begin inhalation therapy as prescribed by a healthcare professional

Safety Information:

• This device is intended for inhaling medication for respiratory conditions only

• Use under medical supervision for proper dosage and inhalation technique

• Keep out of reach of children

• Do not immerse the compressor unit in water or other liquids

• Store in a cool, dry place, away from direct sunlight and moisture

• Do not use if any part of the nebulizer kit is damaged or missing

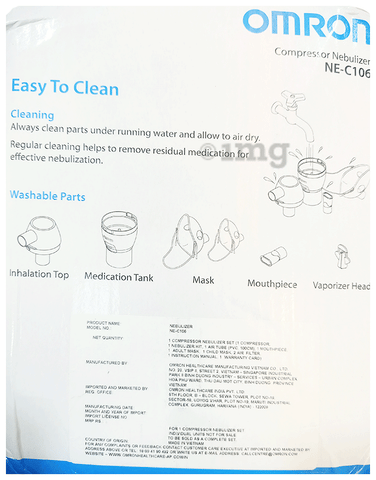

• Clean and dry the nebulizer kit properly after each use

• Read the instruction manual carefully before use
